Voice Assistant PCBA: MEMS Microphone Array Layout & Echo Cancellation Guide

In today’s smart home hubs, AI edge devices, vehicle infotainment and smart speakers, far-field voice recognition is the benchmark of user experience quality. Voice assistant modules must be able to understand human spoken commands across a room, even when playing loud audio or in a noisy environment. When they achieve that level of performance, acoustic hardware, digital signal processing (DSP), and the high-density برد مدار چاپی Assembly (PCBA) layout are tightly co-designed.

FS Tech is one of the premier turnkey PCBA manufacturers specialising in voice assistant module مونتاژ PCBA و تولید PCB. Working together with hardware engineers, we convert complicated acoustic algorithms into tangible, manufacture-ready electronics. Voice assistant PCBA development requires control over high-speed digital lines, protecting microvolt microphone signal lines from power supply line noise and decoupling large vibrations coming from onboard Power Amplifiers (PA).

The following guide provides an extensive list of essential physical design guidelines, signal integrity considerations, acoustic decoupling methods and certification requirements – including Amazon AVS and Google Assistant – necessary to build far-field voice wake-up modules ready for high-volume production.
Voice Assistant PCBA MEMS Microphone Array Layout & Echo Cancellation Guide

Architecture of a Modern Voice Assistant PCBA

Before diving into trace-level برد مدار چاپی layout, it is crucial to understand how sound flows through a modern voice assistant hardware platform. The PCBA typically integrates four major subsystems:

  1. Acoustic front-end (MEMS array): It is made of multiple surface-mount MEMS (Micro-Electro-Mechanical Systems) digital or analogue microphones in linear, triangular, or circular geometries for spatial beamforming.
  2. An audio DSP or a System on a Chip (SoC): It runs Acoustic Echo Cancellation (AEC), Direction of Arrival (DOA) estimation, Blind Source Separation (BSS) and local Wake-Word Engines (WWE).
  3. Power Amplifiers (PA) & Audio Output: Internal speakers driven by Class-D or Class-D/H amplifiers, with output power from 3W up to more than 30W.
  4. The Power Management Unit: PMU consists of switched-mode power supplies (SMPS) and low-dropout (LDO) regulators distributing several rails of power to high-current speakers and ultra-sensitive acoustic sensors.

The key engineering challenge in this configuration is self-interference: the speaker driver generates acoustic and mechanical vibration, which directly feeds into the microphone array; and low-level microphone signals are at risk of corruption by Class-D switching noise. These problems can be solved through accurate printed circuit board design and execution.

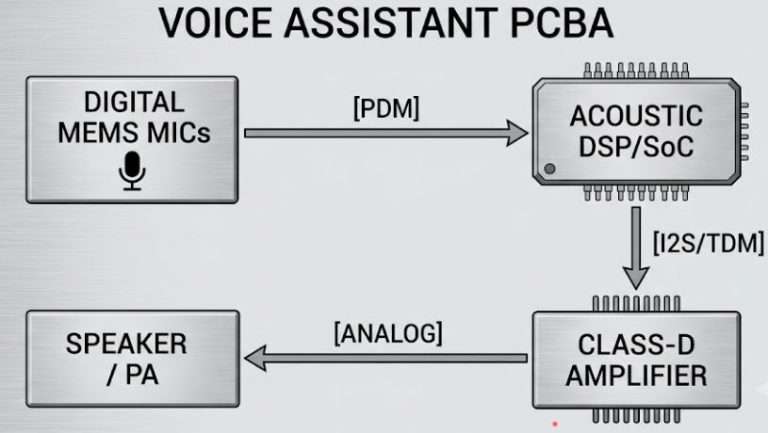

Voice Assistant PCBA

1. PDM Trace Length Matching for Digital MEMS Microphone Arrays

The majority of the modern voice assistant modules are integrated with a digital MEMS microphone, which uses PDM rather than an analogue microphone. PDM sends a high-oversampled 1-bit audio signal via a shared clock CLK line, which is provided by the host DSP, while returning modulated data DATA on alternate clock edges.

Due to the precise sampling times required by PDM, with clock frequencies typically within the range of 1.024 MHz and 4.8 MHz, signal integrity and propagation delay over the array have a direct impact on the channel-to-channel phase that is required for beamforming algorithms.

Trace Length Matching Rules

A multi-microphone array (i.e., the 2-mic, 4-mic ring, and 6-mic circular layouts) beamforming algorithm computes the sound arrival time difference in microseconds. When the ردیابی PCB propagation delays of the microphones differ too much, distortions of the spatial directivity of the array are introduced by the hardware.

  • FS tech recommends that all lines which carry PDM Clock CLK and Data DATA signals should be matched with a trace length tolerance of ± 50 mils (±1.27 mils) across the array.
  • The skew limit is where signals on FR-4 microstrip inner/outer layers propagate at 150 ps/inch (6ps/mm). By matching within ± 50 mils, the traces’ skew was kept under 7.5 picoseconds to keep the clock-to-data jitter many orders of magnitude below the MEMS microphone sampling aperture.
  • It is not advisable to daisy-chain the PDM clock lines across more than two microphones. Buffered fan-out buffers or termination resistors should be utilized.
  • To drive four or more digital microphones, a clock distribution tree or multi-output buffer آی‌سی‌ها should be used to ensure that all CLK branches have a similar capacitive load.
microphone array clock routing optimization

Matching Impedance and Avoiding Crosstalk

The PDM clock signals have fast rise and fall times ( tr, tf＜10ns). Due to their high edge rates, digital square waves generate harmonic energy into the tens or hundreds of megahertz region. This can create EMI and signal reflections on mismatched traces.
  • Make sure to route all PDM CLK و DATA lines as single-ended امپدانس کنترل شده traces with a target nominal impedance between 50Ω± 10%.
  • Install a dampening resistor in series on the CLK line as close as possible to the driving DSP/Codec pin. Use a resistor in the range of 22Ω to 33Ω. The ringing and overshoot caused by capacitive loads from MEMS packages is damped.
  • Enforce the 3W Rule (spacing between the center of traces should be not less than the 3-time width of the traces) between PDM CLK, PDM DATA and neighbouring high-speed communication buses (e.g. SPI, I2C, Wi-Fi SDIO or USB). Avoid routing PDM data traces directly in parallel with switching power lines or antenna feedlines.
  • All PDM traces must run over a solid reference plane i.e., GND, and must not cut into the IC ground. Do not route PDM lines across plane splits. Crossing a ground gap leads to high-loop inductance. This can cause heavy EMI radiated emissions and clock jitter.

2. Class-D Amplifier vs. Microphone Structural Isolation

The closeness of high power on the Class D Power Amplifier section to the high sensitivity of the MEMS Microphone section is an inherent constraint of PCBA design of voice assistants. When a smart speaker is playing music or reading a prompt at high volume, two types of feedback will degrade mic performance.

  • Acoustic feedback is when some sound travelling through air from the speaker cone enters the acoustic port of the mic.
  • Mechanical vibration is energized via the enclosure and rubber gaskets, frame, and بستر PCB خودش.

Although DSP-based AEC can clean up linear acoustic air feedback, it is difficult to take care of the nonlinear physical distortion caused by the mechanical vibration of the board. When the PA vibrates the PCBA, the MEMS silicon diaphragm vibrates mechanically, generating harmonic distortion products that affect AEC performance.

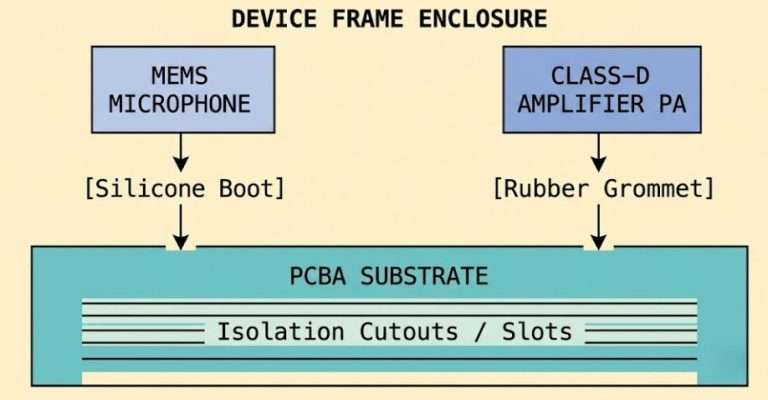

Structural Isolation of Mic and Speaker Driver Amplifier

Mechanical Isolation Techniques for PCBA

In an effort to mitigate the possibility of energy generated by speakers from coupling into and over-saturating the microphone front-end, اف اس تک engineers use a mechanical isolation technique during hardware PCB layout and product assembly.


Milling PCBs and Isolation Slots.

In compact designs where the speaker driver and microphone array are mounted on the same PCB, mechanical isolation slots can be added to the PCB. To impede mechanical vibration pathways, the milled keep-out trenches should be located between the PA output stage and the microphone array. The slots can help dampen flexural and transverse mechanical vibrations within the FR-4 substrate in these regions.

Arrangement and Spacing of Components

Mechanical clearance deemed appropriate should be ensured between the Class-D PA IC, output-filter inductors and capacitors and the nearest MEMS microphone. When there is chassis space available, it is desirable to maintain a separation of between 50 mm and 80 mm – to decouple high-power speaker circuitry from sensitive microphone circuitry mechanically and acoustically.

Acoustic Gasket and Boot Design

Bottom-port MEMS microphones need airtight acoustic sealing between the sound inlet hole of the PCBA and the outer plastic. Make use of customized silicone rubber boots with high durometer shore dampening power. The boot should seal tightly against PCB mask top/bottom without applying non-symmetrical mechanical stress to the MEMS package, which can shift the intrinsic frequency response of the microphone.

PCB Thickness and mass loading

Standard 1.0mm thick printed circuit boards flex easily under low-frequency bass vibration range. FS Tech suggests that for voice assistant products with on-board speakers with power ratings greater than 5W RMS, the minimum thickness of PCB core should be 1.6mm (or high-Tg FR-4 material like ITEQ IT-180A of multi-layer construction) for a stiffer PCBA to shift the natural resonant frequency of the PCBA above the audio voiceband (300Hz – 4kHz).

3. Noise Floor Management of Far-Field Voice Wake-Up (< 10mV Ripple)

Voice wake-up far-field solutions are engineered to detect weak acoustic signals up to 3 to 7 meters away. When the microphone is that far away, the sound pressure level (SPL) of the human voice at the microphone port may fall below 30dB SPL. It is imperative to have an ultra-low electrical noise floor on the PCBA to enable consistent triggering of the wake-word under such adverse circumstances.

The major source of noise affecting the microphone SNR is the high-frequency noise from DC-DC buck converters, Class-D output stage, and RF bursts from Wi-Fi/بلوتوث modules.

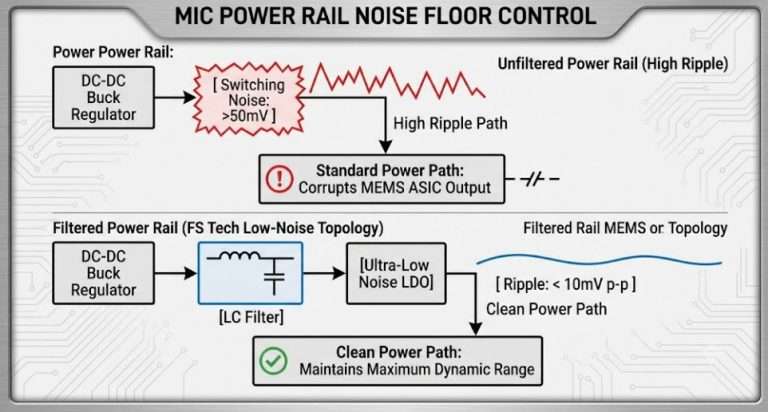

Mic Power Rail Noise Floor Control

Power Supply Ripple Requirements for MEMS Microphones

Whereas MEMS microphones have PSRR specifications of 60-80dB at 1kHz, this rejection property deteriorates significantly in frequencies ranging from 100kHz to 2MHz – the very range of operation of the switching frequency for SMPS buck converters. Once the power rail ripple reaches the threshold of 20mV to 50mV, switching noise gets past the rejection provided by the microphone and heterodynes into the audible range, increasing the noise floor, effectively blinding far-field wake-word algorithms.

FS Tech Power Routing Guidelines for Microphone VDD:

  • Noise and ripple on the microphone VDD rail must be kept less than 10mVp-p across a 20Hz to 20MHz measurement bandwidth with a target of 3mVp-p in the audio bandwidth 20Hz – 20kHz.
  • It’s important never to power MEMS microphones from a master switching regulator and not to share the 3.3V / 1.8V rail driving the SoC/Wi-Fi module. It is recommended to pass mic power through a dedicated high PSRR, ultra-low-noise, low-dropout regulator to give (> 70 dB) PSRR at (1MHz).
  • Pi filter networks, including either C-L-C or C-R-C networks, can be employed. For every microphone package, place a ferrite bead, for example, 600 Omega @ 100 MHz, or a 10 Omega small resistor in series before the decoupling capacitors.
  • Put one 1uF ceramic cap for low-frequency bulk storage and one 100nF or 10pF cap with low ESL to decouple high-frequency RF to ground, within 2mm of the MEMS VDD pin. Use short, wide vias to connect the ground side of these decoupling caps directly to a quiet analog ground plane.
Mic Power Rail Filter Architecture

4. MEMS Microphone Acoustic Port Design & PCB Routing

The frequency response and total harmonic distortion (THD) of Top-Port and Bottom-Port digital MEMS microphones depend on the physical interface of the PCB substrate and acoustic chamber.

Acoustic Port Hole Design Rules

A drilled hole (directly through the PCBA dielectric layers) allows bottom-port microphones to capture sound:

  • The acoustic port hole on the PCB must have the diameter recommended by the manufacturer (usually 0.5mm to 0.8 mm). Holes which are too small will increase the acoustic resistance, thus increasing the thermal noise and shifting of resonance. Holes which are too large may negatively affect the integrity of the solder ring.
  • The acoustic hole itself shall be an Unplated (NPTH) hole, rather than a plated through-hole, to prevent copper from flaking into the MEMS acoustic cavity.
  • For the acoustic hole on the primary mounting layer, there shall be an annular copper ring that is soldered to the ground pad of the microphone package, which must not have any breaks.  It creates an airtight acoustic seal and creates a 360-degree Faraday cage that prevents RF noise from leaking into the chamber.

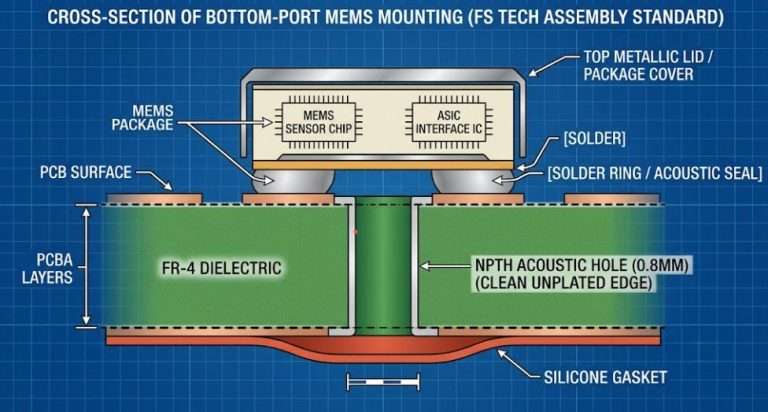

Cross-section of Bottom-port MEMS Mounting

5. Acoustic Echo Cancellation (AEC) Hardware-Software Integration

AEC is a technique that works on audio captures and achieves suppression of echo. When this device plays audio at the level of 85 dB SPL, and the user speaks at the level of 60 dB SPL, AEC removes the already known speaker output signal from the microphone input signal. Hence, the user’s voice is left for processing.

Nonetheless, hardware accuracy is a key reliance of AEC. When the PCBA layout generates clock drift, non-linear distortion, or phase latency, the AEC algorithm fails, causing wake-words to be missed or voices to be clipped.

AEC Signal Flow Pipeline

Hardware Requirements for AEC Performance

For high AEC performance, the hardware has to be designed to meet three strict conditions.

Hardware Loopback Reference Track I2S-TDM Synchronization

The AEC engine requires a digital copy of the audio that is delayed and exactly synchronized with what is sent to the Class-D amplifier.

Zero latency drift indicates that the host DSP must clock the digital microphone PDM/I2S input bus and the speaker Class-D I2S output bus from exactly the same master clock (MCLK). Separate crystal oscillators for the audio input and audio output stages should never be used. Even a drift of a few parts per million (PPM) of the oscillator causes the sample phase to slip, which destroys AEC reference tracking as time progresses.

Low Distortion in Amplifier Linearity Causes

When the amplifier clips, saturates, or has a high total harmonic distortion (THD+N> 1%), non-linear harmonics will be present in the first-order acoustic environment, which the linear AEC adaptive filter cannot model or subtract.

Choose Class-D amplifiers with feedback loops that keep the THD+N < 0.1% under full power. Confirm that the supply rails that are used to power Class D PA (PVCC) must have sufficient bulk decoupling (large low-ESR electrolytic or ceramic banks) to avoid the dropping of Class D supply rails against heavy dynamic bass hits.

Linearity of Microphone Phase Response

To ensure effective spatial filtering, all microphones in an array must have matching phase sensitivity. FS Tech suggests that MEMS microphones should be specified to have tight matching in terms of sensitivity (e.g., ±1 dB or better) and phase (e.g., ±2° in the 200 Hz – 4 kHz range) to limit the overhead needed for adaptive DSP tuning.

6. Amazon AVS & Google Assistant Audio Certification Requirements

Before mass production and gaining access to native cloud ecosystems, a voice assistant device must pass third-party hardware certification testing. For example, third parties may perform Amazon Alexa Voice Service (AVS) Qualification or Google Assistant Audio Testing.

Certification laboratories use calibrated head-and-torso simulator (HATS) and SoundPower surround noise speaker arrays in a specialized semi-anechoic chamber to ensure the performance of hardware that is fully assembled. The success or failure rate in these crucial testing categories depends directly on PCBA design.

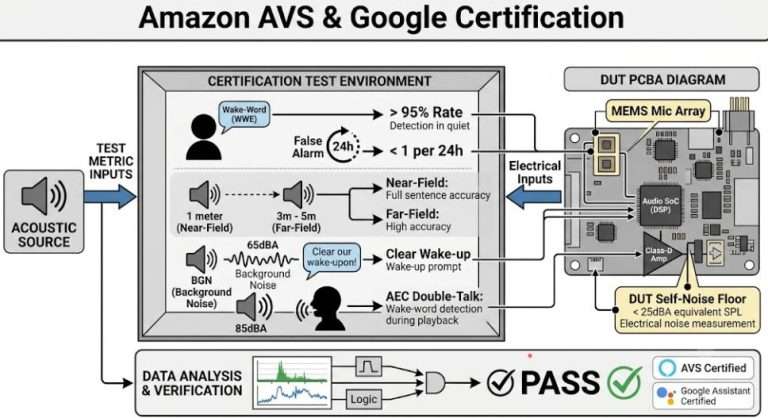

Amazon AVS and Google Audio Testing Certification

Key Certification Test Requirements

Double – Talk Wake – Word Performance

The hardest test is the ability of the voice assistant to detect its wake-word (either “Alexa” or “Hey Google”) while loud music plays at maximum volume (85 dBA at 1 meter).

  • Failure Modes:PCB vibration or amplifier clipping failure modes.
  • Mitigation:Make sure that the PDM lines (especially the lines connected to the device) have matched lengths and make use of structural vibration isolation slots on the board. Make sure that the LDO power rails are clean with low ripple.

Testing in Background Noise Condition

During the test, external speakers will produce diffuse sounds (pink noise, pub noise, washing-up sound, etc.) while trying to cause a device to trigger.

  • Failure Modes: Improper microphone array geometry or ripple at the power supply degrades the dynamic range.
  • Mitigation: Make sure that ripple in the منبع تغذیهdoes not exceed 10mVp-p, so that the full dynamic range of the microphone is preserved, and its Signal-to-Noise Ratio is 64 dB-68 dB or above.

The amount of noise distortion

In the absence of enclosure or PCB cavity seal leakage, the system frequency response should be flat in the primary vocal range (300 Hz to 8 kHz) without any sharp resonance spikes.

Why Choose FS Tech for Voice Assistant PCBA Manufacturing?

The integration of acoustic theory with manufacturing technology is our forte at FS Tech. As a seasoned turnkey PCB assembly supplier, we are able to deliver more than just خدمات ساخت برد مدار چاپی (PCB). Our engineering department will conduct an in-depth DFM analysis with a focus on audio-friendly design in order to preserve your MEMS microphone array design and Class-D isolation methods during the فرآیند مونتاژ SMT.

ما قابلیت مونتاژ PCB include بردهای مدار چاپی HDI up to 20 layers, fine-pitch مونتاژ BGA, ، و کنترل کیفیت in line with IPC Class 2/3. We are able to produce any 2-mic circle array or 6-mic linear array for high-volume production of smart speakers with consistent impedance control, trace length matching (±1.27 mils) and ripple-free power distribution. Your voice assistant PCBA will be built in compliance with Amazon AVS and Google Assistant acoustical tests and will reliably function in thousands of units produced.

Common PCBA Design Mistakes That Break Voice Wake-Up Performance

Even with the best hardware components, there are still cases wherein a hardware team fails during certification because of some common mistakes made in PCBA designs. Here are two major mistakes to take note of:
  1. Async Clock Domains: Having individual crystal oscillators for the input microphone PDM/I2S and output Class-D I2S speaker. Parts per million (PPM) deviation in the frequency will render useless the acoustic echo cancellation (AEC) reference tracking and the filter process of the DSP.
  2. Lack of Isolation Slots in Structural Design: No isolation slots milled between the PA output and the microphone array. The direct vibration on the FR-4 from the class-D amp creates non-linear harmonic distortions that cannot be filtered using AEC.
  3. Inadequate Decoupling for Class-D Power Supply Rails: Insufficient bulk decoupling (low ESR capacitors) on the PVCC rail. Bass impulses cause sagging in the supply rail, making the amp clip (THD+N > 1%) and rendering the AEC algorithm ineffective.
  4. Neglecting NPTH Rules: با استفاده از plated through-holes (PTH) for bottom-port microphone acoustic inlets. Flakes from the copper plating may fall onto the MEMS diaphragm during reflow, thus changing its frequency response.
FS Tech’s DFM experts will be able to detect these problems in advance, and will save you weeks of re-spinning and smooth production start.

🔍 Optimize Your Design with DFM

Get a professional DFM review to eliminate manufacturability risks, reduce costs, and speed up production. Our experts are ready to help.

Request Free DFM Analysis →

نتیجه‌گیری

Developing a good voice assistant PCBA module is more than just putting a processor and connecting wires. Getting reliable far-field voice detection with strong echo canceller functionality demands precision in all aspects of the design and manufacturing process of the PCBA. It is possible to satisfy Amazon AVS and Google Assistant certification criteria by equal routing of digital MEMS microphone arrays, physical separation of the power amplifiers to prevent acoustic feedback, suppression of power supply ripple below 10mV, and hardware synchronization of ACE clocks.

FS Tech makes difficult electro-acoustic tasks simple and transforms them into productive and profitable production processes. Our خدمات PCBA کلید در دست guarantee that your voice assistant PCBA module will operate properly in the real world.
Ready to launch your intelligent audio device on the market? Work with FS Tech’s engineers on developing your next voice assistant PCBA module. Get a free design for manufacturing (DFM) review and manufacturing consultation now!
