How to Read a Circuit Board: A Complete Step-by-Step Guide for Engineers and Technicians (2026)

This article was originally published in Jul 2024 and last updated on August 26, 2026.

How to Read a Circuit Board
مجامع برد مدار چاپی (PCBAs) form the heart and soul of practically all current electronic devices. Whether you are dealing with smartphones, medical equipment, automotive devices, or industrial control, PCBAs connect various electronic components together in a closed chain to create a working circuit board. For anyone who works in the field of PCBA manufacturing or electronic device repairs, mastering the skills to read and understand a circuit board is very important.

Reading a circuit board is not limited to identifying elements only; it requires knowing how the components are physically laid out, how signals pass through, how the silkscreen notation can be interpreted, and even cross-referencing the layout with the schematic diagram. This guide presents a step-by-step way to learn how to read PCBA boards, covering everything from basic element identification to advanced troubleshooting techniques.

What is a PCBA?

Prior to engaging in the reading process, it is essential to understand what a PCBA actually is. A برد مدار چاپی (برد مدار چاپی) is a bare board consisting of a non-conductive substrate with copper traces and pads etched onto it. A PCBA (Printed Circuit Board Assembly), on the other hand, is the completed board after all electronic components—resistors, capacitors, integrated circuits, connectors, and other parts—have been soldered onto the bare PCB.

In other words, a PCB is the “skeleton” while a PCBA is the fully functional “body” with all the organs in place. Understanding this distinction is the first step toward reading circuit boards effectively.

What is a PCB Made of?

در وبلاگ‌های قبلی ما در مورد مفهوم PCB و PCBA صحبت شده است. PCB یک جزء کلیدی در صنعت الکترونیک است و به طور گسترده در تولید محصولات الکترونیکی به عنوان حامل قطعات الکترونیکی و اتصالات الکتریکی مورد استفاده قرار می‌گیرد. و PCBA برد مدار چاپی است که تمام قطعات الکترونیکی روی آن نصب می‌شوند. سپس می‌توانیم برای درک واضح‌تر، تشخیص و درک PCBA، بخش زیر را بررسی کنیم.

To read a circuit board, you must first recognize its physical building blocks. Here are the essential elements you will encounter on any PCBA:

زیرلایه‌های PCB

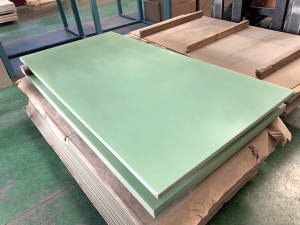

بستر PCB is the foundational material used in making the printed circuit board. It provides the base structure for both mechanical strength and electrical insulation of the various electronic components on a PCB. Some common substrates are FR-4 (flame-retardant fibreglass epoxy laminate), Polymide, ، و آلومینیوم substrates.
FR-4
FR-4

Copper Traces

These are conductive ردپاها on a PCB through which electrical currents flow between the components. They are usually copper foils because of the high electrical conductivity of copper. Copper traces form the “roadways” of printed circuit boards. On a physical board, traces appear as thin lines running between pads and components.
ردیابی‌های PCB
ردپاها

پدها

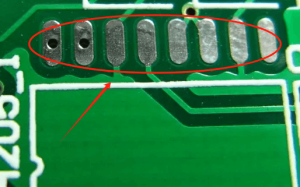

پدها are conductive sections on the PCB where electronic components are soldered. The role of the pads is to provide an interface between the leads of components and the conductive paths of the PCB. The pads differ in size and shape depending on the component to be attached—through-hole pads have holes for leads, while surface-mount pads are flat.
پدهای PCB
پدها

ویاس

ویاس are holes in multilayer PCBs that connect the conductive layers at different levels of the board. The vias make possible electrical connections in the vertical direction, which helps in creating circuits even in limited spaces. The vias are small copper-plated holes on the PCB surface.
ویاس‌های PCB
ویاس

سیلک اسکرین

This is the printing of relevant data on either the upper or lower layers of the PCBA. The data is in the form of reference designators (R1, C2, U3), diodes and capacitors polarity symbols, logos of companies, PCB revisions, and orientation of ICs. The سیلک اسکرین serves as the first visual aid when identifying components.
سیلک اسکرین
سیلک اسکرین

ماسک لحیم کاری

The ماسک لحیم کاری is the covering over the copper traces. It can be in different colours, but most commonly green. It prevents oxidation, protects against electrical shorts, and ensures that solder only adheres to the designated pads during assembly.

Electronic Components

There are two broad groups of اجزا on a PCBA:
  • اجزای فعال: Components that have the ability to control or amplify electrical signals and need power for operation. This group includes transistors, آی‌سی‌ها, microcontrollers, and op-amps.
  • اجزای غیرفعال: Components that lack the ability to control or amplify signals. They include resistors, capacitors, inductors, and ترانسفورماتورها.

How to Read a Circuit Board: A Step-by-Step Guide

خواندن برد مدار چاپی و اجزای آن شامل درک عناصر مختلف و تفسیر طرح، اجزا و مسیرها برای اطمینان از عملکرد صحیح و عیب‌یابی است. این راهنمای گام به گام، هر جنبه را عمیق‌تر بررسی می‌کند و دستورالعمل‌های دقیقی را برای مهندسان و تکنسین‌ها ارائه می‌دهد.

Step 1: Understand the PCB Layout

The PCBA layout gives the location of the components and their interconnections. First, observe the layout of the board.

Identification of the type of board:
Analyze Component Placement: Determine which components are the most critical ones in the circuit. Identify the largest ICs, connectors, and power-associated components first. Next, determine the placement of passive components in relation to the active components. Component placement is usually done in a sensible way such that منبع تغذیه components, signal processing components, and connectors are clustered.

Examine Trace Routing: The traces need to be properly laid out to ensure reliable signal transmission and reduce interference. Observe:
  • Trace width—traces with larger widths usually carry more current
  • Trace spacing—sufficient spacing ensures no shorts and crosstalk
  • Trace routing—differential pair traces and star routing for reliable voltage distribution

Step 2: Identify Electronic Components

Here lies the most practical aspect of reading a circuit board. Use the information in the silkscreen layer for guidance:

Reference Designators: Each component has an alphanumeric reference designator. Some common prefixes for each component type are:
  • R = Resistor
  • C = Capacitor
  • L = Inductor
  • D = Diode
  • Q = Transistor
  • U یا آی سی = Integrated Circuit
  • J = Connector
  • تی پی = Test Point
  • X = Crystal/Oscillator

Component Values: Numerical values next to the reference designator provide details about the electrical properties of the components, such as resistance in ohms (Ω), capacitance in farads (F), or inductance in henries (H).

Polarity Markings: Components that are polarized, such as electrolytic capacitors, diodes, LEDs, and IC chips, should have polarity indicators. These include:
  • A “+” or “−” marking next to the part
  • A band around a diode cathode
  • A marked corner or small dot on an IC chip (indicating pin 1)
  • A notch on a connector

Visual Inspection Tips: Inspect all markings using a magnifying glass or microscope. It is wise to take pictures of the board prior to changing anything.
نشانگرهای رایج قطعات الکترونیکی
طراحکامپوننتطراحکامپوننت
RمقاومتUمدار مجتمع (IC)
CخازنJکانکتور
LسلفKرله
DدیودMموتور
QترانزیستورFفیوز
TترانسفورماتورYنوسانگر کریستالی
Xکریستال یا یکسو کنندهPپین کانکتور
Sسوئیچواقعیت مجازیمقاومت متغیر (پتانسیومتر)
ال ای دیدیود ساطع کننده نورBباتری
Gگیت (دروازه منطقی)Zدیود زنر
تی پینقطه تستEامیتر
HبخاریNگره

مرحله ۳: درک نمودار شماتیک

The schematic diagram is the logic design of the circuit, where the physical layout is ignored and the connections between circuit elements are highlighted. Here’s what you should know about reading the schematic diagrams effectively:


Power and Ground: Identify the main power and ground connections first. These are typically labeled with symbols such as VCC, VDD (positive supply), and GND (ground). Everything else in the circuit depends on these reference points.

Signal Flow: Look at the flow of the signals starting from the input point to the output. Signal flow will give an idea about how the signals move in the circuit and how each component connects to other components in the circuit.

Component Symbols: Study the standard symbols used in schematics:
  • Resistor: Zigzag (IEC standard uses rectangular symbol)
  • Capacitor: Two parallel lines (capacitors with polarity have “+” symbol on them)
  • Diode: Arrow symbol from triangle towards a straight line (direction from anode to cathode)
  • Transistor: Hybrid symbol of lines and circles
  • IC: Rectangular symbol with pins numbered

Sub-circuits: Analyze any complicated schematics in terms of smaller circuits. Typical sub-circuits include power supply, amplifier, filter, oscillator, and microcontroller circuits. Understanding each sub-circuit individually makes the overall design much more approachable.

Step 4: Analyze the Physical PCB Layout

Having grasped the schematic diagram, go ahead and see how the circuit is actually laid out on the board:

Trace Width and Spacing: The traces have to be wide enough so as to conduct the necessary current without overheating. In general, power traces are larger than signal traces. Adequate separation ensures no possibility of اتصال کوتاه or crosstalk between adjacent traces.

Routing Patterns: Recognize common routing patterns:
  • جفت‌های تفاضلی: Two traces running side by side for fast signal transmission (USB, اچ دی ام آی, Ethernet).
  • مسیریابی ستاره‌ای: Several traces branching out from one common junction (used for distributing power).
  • Daisy Chain: Traces connecting components serially.

Via Analysis: Vias transfer signals between layers. Via placement is critical; too many vias on the same signal trace will impact signal integrity. Vias are helpful for dissipating heat and providing mechanical support.

Layer Stack-up: In multilayer boards, learn the purpose of each layer. Some layer purposes include the following:
  • Top layer: Components and signal routing
  • Inner layers: Power plane, ground plane, more signal layers
  • Bottom layer: Components (optional) and signal routing

Step 5: Read the Silkscreen for Assembly and Troubleshooting

Silkscreen is the most important tool for navigation:

  • Component Location: Use reference designators to find the required components easily when performing troubleshooting or rework operations.
  • Orientation Guides: Look for indications that show the proper orientation of the components—very important for ICs and polarized components.
  • Test Points: Find “TP” designators for test points that can be used for probing without damaging the board.
  • Revision Information: Take note of the PCB revision number and date—these help track design changes and identify known issues.

نکات کاربردی برای خواندن PCB و PCBA

به عنوان یک professional PCBA service provider, we bring an additional layer of expertise to reading circuit boards:

DFM (Design for Manufacturability) Analysis

Upon receiving a new design, we conduct a DFM analysis by “reading” the board in terms of possible manufacturing problems:
  • Clarity of silkscreen: Is it clear enough? If not, we may experience assembly problems because of unclear polarity marks and reference designators.
  • Compatibility of pad-to-component ratio: Are all component footprints compatible with the parts used? Incompatibility results in poor soldering.
  • Thermal management: Does the board have enough thermal relief pads for large copper pours?

Cross-referencing BOM with Physical Board

An essential stage of PCBA is making sure that the فهرست مواد (BOM) matches the physical board. We do this by comparing:
  • Component values with the BOM specifications
  • Reference designator locations with assembly drawings
  • Polarity orientation with design files

Reading AOI and X-Ray Inspection Reports

بازرسی نوری خودکار (AOI) و بازرسی با اشعه ایکس are essential کنترل کیفیت tools. Learning to read these reports helps identify:

IPC Standards Compliance

When making professional PCB assembly, certain standards are used, such as IPC-A-610 for acceptability of electronic assemblies. They specify:
  • Criteria for solder joint quality
  • Tolerances for component placement
  • Cleanliness criteria
  • Mechanical damage acceptability criteria
Knowing those standards will help you understand a board not only from the perspective of functionality, but also in terms of its quality.

Common Mistakes and How to Avoid Them

Even professional engineers can make errors while reading circuit boards. These are the common mistakes:

  1. Neglecting the Component Polarity: It is one of the most common assembly errors, which consists of placing a polarized component in the wrong way. It is crucial to pay attention to cathode markings on diodes, “+” symbols on electrolytic capacitors and Pin 1 markers on ICs.
  2. Misunderstanding Reference Designators: The letter “L” can easily be mistaken for “R”. Make sure that you have read the right reference designator on the busy silkscreen.
  3. Mixing Up Vias and Test Points: Vias are plated holes to connect different layers. Test points are created for prodding. Prodding a via will harm its barrel plating.
  4. Assuming That There Are No Traces Inside: In multi-layered circuit boards, the traces may not be visible from the surface. It is important to remember that traces may travel through other layers.
  5. Ignoring the Solder Mask: The solder mask may hide fine traces. Use adequate light and magnifier when it is required.

Tools Used for Reading Circuit Boards

The right tool makes reading circuit boards much easier and more precise:

  • Digital Multi Meter (DMM): Required to measure voltage, current and resistance. The continuity test function is required to check connections and any shorts or opens.
  • Magnifying Glass/Microscope: Required to examine smaller components and read small silkscreen labels on the board.
  • Oscilloscope: Required to analyze complicated signals and signal integrity checks.
  • Lighting: LED lighting at different angles is required to see details not visible under normal light.
  • Reference Materials: Always have component data sheets and other documentation nearby. This documentation will give you information not available on the physical board.

نتیجه‌گیری

Reading a circuit board is a basic skill in electronics that connects the two worlds of design and manufacturing. By knowing how to read circuits, engineers and technicians can achieve reliable performance, efficient troubleshooting, and further progress in the process of electronic design.

در FS PCBA, we are not just able to read circuits, but to manufacture them as well with the best quality possible. From DFM analysis and تهیه قطعات, through مونتاژ PCB کلید در دست, to quality control, our engineering team will ensure that any project—from a prototype to full-scale production—is carried out precisely.

Ready to turn your circuit design into a reliable, high-quality PCBA? تماس با ما today for a free design review or request a quote. Let our expertise bring your electronic vision to life.
The above guide has been prepared by the engineering team at FS PCBA, a professional PCB assembly service provider with years of experience providing quality PCBAs to customers from all around the world.

FAQs about Reading a Circuit Board

These are reference designator prefixes. R stands for resistor, C for capacitor, and U for integrated circuit (IC). Each prefix is followed by a unique number (e.g., R1, C2, U3) that identifies the specific component.
Look for the cathode marking on the diode itself—a stripe or band on one end. On the PCB silkscreen, there is usually a line or “K” marking indicating the cathode side. The cathode must align with the marking.
A schematic shows the logical electrical connections between components using symbols and lines. A PCB layout shows the physical placement of components and routing of traces on the actual board. The schematic is the “what” and the layout is the “how.”
Use a multimeter in continuity (beep) mode. Place one probe on the pad at one end of the trace and the other probe on the pad at the opposite end. If the multimeter does not beep, the trace is broken.
Green has been the industry standard for decades because it provides good contrast for visual inspection, is cost-effective, and the original epoxy formulations were developed in green. Other colors (red, blue, black, white) are available but may cost more.
Start with the power supply section—find the main power input, voltage regulators, and decoupling capacitors. Then identify the main processor or microcontroller. From there, trace signals outward to peripheral sections. Breaking the board into functional blocks makes the task manageable.
