What is Pad Cratering? PCB Failure Modes, Reliability & Solutions
In printed circuit boards (PCBs), حفره دار شدن پد is a reliability issue when tiny fissures form between the laminate and the copper pad. This latent failure can degrade the integrity of solder joints, causing unanticipated failure in consumer electronic devices, automotive systems, aerospace equipment, and other critical devices.
PCB pad cratering is a critical concept that engineers, manufacturers, and quality specialists must understand regarding product durability. In this article, we will discuss its causes, detection methods, the difference between it and other PCB failures, reliability effects, prevention methods, repair possibilities, and future trends in pad cratering reduction.
Understanding Pad Cratering
What is PCB Pad Cratering?

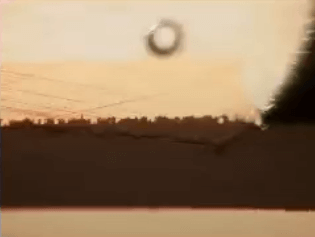

Pad cratering is the development of micro-cracks at the interface between the resin and copper pad. Such cracks are progressively enlarged by repetitive stress until they cause partial or complete delamination of the pad from the PCB laminate. It will create a “crater” effect and compromise the connection without any visible signs on the surface. This leaves a solder joint that is weak and can still look good on the outside, but fails when put under electrical or mechanical stress. This process is accelerated by stress factors like PCB bending, drop impact during handling, or high-temperature cycling. Pad cratering may be considered a hidden reliability risk since the damage often propagates below the surface.
What Causes Pad Cratering?
Pad cratering in PCB assemblies is caused by several factors:
- تنش مکانیکی: Drops, board flex, or high clamping pressure may cause the resin around the pad to crack.
- Thermal Stress: Heating and cooling (particularly during لحیم کاری جریان مجدد or field operation) cause expansion and contraction that damage the laminate.
- Material Weaknesses: Laminate of low grade, inadequate adhesion of resin, or a mismatched layer stack-up all decrease the stress resistance, thus increasing the vulnerability of the PCB to pad damage.
Pad cratering is typically caused by a combination of these stresses on a PCB during its service life, and prevention through design and material selection is crucial.
Difference Between Pad Cratering and Other PCB Failures
Pad cratering can be easily mixed up with other types of common PCB failures, but the mechanisms are different and call for different sets of solutions. These differences are essential to understand correctly to analyze the root cause and take effective corrective actions.
Pad Cratering vs. Solder Joint Cracking
Pad cratering is the failure that occurs under the copper pad in the resin of the laminate, whereas solder joint cracking occurs at the solder to pad interface. In pad cratering, the solder joint still looks good, but the copper pad is partially delaminated. On the other hand, solder joint cracking is usually noticeable during inspection and directly prevents electrical continuity at the joint. Confusing a pad crater with a solder crack may result in improper rework or ineffective repairs.
Pad Cratering vs. Pad Lifting / Delamination
Pad lifting and delamination involve the physical separation of the entire copper pad or laminate layer from the PCB surface, and are often caused by excess heat or poor adhesion during fabrication. Pad cratering is, however, more subtle and is typified by micro-cracks in the resin layer under the pad as opposed to pad removal. Pad cratering generally takes more advanced testing to confirm, but it is typically less obvious than delamination.
| Failure Mode | Location of Defect | Key Characteristics |
|---|---|---|
| Pad Cratering | In the PCB laminate under the copper pad. | Hidden defect; solder joint often looks intact. Requires specialized detection. |
| Solder Joint Cracking | In the solder material itself, at the جزء/pad interface. | Often visible under magnification; directly interrupts electrical connection. |
| Pad Lifting | Between the copper pad and the laminate. | The entire pad is physically detached, usually due to excessive heat during soldering. |
Why this differentiation matters: Whether pad cratering, solder cracking, or pad lifting, to employ the most appropriate mitigation strategy. All the failure modes have different causes- mechanical, thermal, or material-related. Failure to address the correct cause can lead to repeated reliability failures. With the correct identification of these failures, engineers can enhance PCB life, streamline manufacturing, and avoid field returns, which are costly.
How to Detect Pad Cratering?
Pad cratering is usually a concealed defect; therefore, it might be difficult to detect it precisely. Unlike the easy-to-detect solder joint failure or lifting pad, pad cratering happens under the surface of the PCB laminate, so this is harder to detect through normal inspection. Nevertheless, there are visual clues and specialized testing methods that can assist engineers in identifying and verifying this failure mode before it causes reliability concerns.
Visual Symptoms of Pad Cratering
Pad cratering does not always have any obvious external damage. However, when magnified or examined under a microscope, engineers can see:
- Pad Separation – The copper pad shows as though it is coming out a little bit of the laminate layer.
- Resin Cracks – Small cracks or crater-like scars under the pad region.
- Micro-fractures under Microscope – Small cracks in the resin that tell of initial signs of pad peeling.
These visual signals may be minute, and thus a superficial examination would lead to the failure to detect the defects.
Testing & Inspection Techniques
To verify pad cratering, there are a few high-tech inspection techniques:
- Cross-sectioning – Cutting the PCB so internal layers are exposed, and بازرسی بصری of cracks at the resin/pad interface can be made. It is a destructive, yet very precise method.
- Acoustic Microscopy – High-frequency sound waves are used to identify internal voids or cracks without damaging the board, and thus can be used in non-destructive testing.
- Dye and Pry Test – A dye is put on the board, and the component is pried off. The dye fills into the cracks, and pad cratering is evident. This is among the most popular inspection methods.
- بازرسی با اشعه ایکس (Limitations) – X-ray technology is not capable of detecting pad cratering because solder damage is at the laminate level, where the X-ray cannot resolve.
With a combination of these detection techniques, manufacturers would be able to detect pad cratering early enough to ensure that they avoid having hidden reliability problems in the field.
Impact on Electronics Reliability
Pad cratering compromises the connection between the copper pad and the laminate, decreasing the long-term durability of the solder joints. Even minor cracks may widen due to thermal cycling, vibration, or handling, causing unreliable electrical connections and eventual PCB failure. The defect is usually concealed and thus a significant obstacle to long-term reliability.
- A cratered pad in a medical device can lead to equipment malfunction.
- In aerospace and defense systems, vibration-induced cracks can affect the safety and performance.
- In vehicle electronics, wear-out speed is increased by repeated stress on sensors and control units.
When overlooked during PCB design or material selection, pad cratering can reduce the life of the product and leave it more susceptible to costly returns and recalls. In addition to financial implications, it also dramatically decreases PCB failure reliability, so manufacturers must ensure they combat this problem at the earliest stages, through design, testing, and quality control.
How to Prevent Pad Cratering in Your PCB Design?
Prevention of pad cratering can be effective by identifying risks during طراحی برد مدار چاپی, manufacturing, and materials selection. Engineers can enhance board durability and reliability through the reduction of stress at the pad-laminate interface by a significant margin.
1. Design for Reliability (DfR)
- Resin-Reinforced Laminates – Reinforced laminates increase the strength against mechanical stress and reduce the possibility of cracks in the resin.
- Pad Sizes and Shapes – Pads are to be optimized to have balanced geometry in order to distribute the mechanical loads uniformly without stress concentration points.
- Controlled Layer Stack-Up – Structured layer stack-ups minimize warpage and flexing and assist in keeping connections stable during operation.
2. Refine Assembly Processes
- Proper Reflow Profile -Using the right temperature profiles in the process of soldering will help in avoiding the thermal overstress of the laminate and pad.
- Stress Reduction in Handling – Board supports during testing, depaneling, and assembly reduce bending loads that may trigger cracks.
3. Apply Protective Measures
- High Tg Laminates – Laminates that have a high glass transition temperature (Tg) have superior thermal stability and can resist cracking during cycling temperatures.
- Underfill Application – Mechanical stress is absorbed by coating components with underfill under high-stress areas to reinforce solder joints.
Through these preventative measures, manufacturers will be able to minimize the incidence of pad cratering and improve the reliability of the PCB in harsh applications.
How to Repair a Cratered Pad?
Once pad cratering has already been caused, it is usually very hard to repair, but there are a number of different mitigation techniques that may be used to prolong the life of the PCB or minimize the risk of failures.
- Tacking with Plastic or Adhesive Fill: A bubble or blob of adhesive can be added by the operator to stabilize soldering and retard crack propagation.
- Pad Repair Techniques: Minor damage may be repaired in part, depending on the application, using specialized repair kits. These repairs are labor-intensive and may not be reliable in high-stress applications.
- Board-Level Mitigation: Widely-cratering assemblies are generally more efficiently and reliably redesigned with stronger laminates or optimized pad geometries rather than repaired.
- Cost Factors: Repairs can be cost-effective on کم حجم, high-value items (هوافضا, دفاع, پزشکی devices), but in لوازم الکترونیکی مصرفی, replacement or redesign is often more economical.
Preventive measures must go hand in hand with mitigation in advancing long-term PCB reliability.
نتیجهگیری
The pad cratering is a silent yet critical reliability issue in the current PCB system, causing compromised solder joints, intermittent faults, and shorter product life. By being aware of the possible causes, being able to detect them, and adopting prevention practices, manufacturers can reduce this risk and have stronger board performance.
Whereas some repair strategies could offer short-term solutions, long-term reliability can only be achieved through appropriate design, use of quality materials, and controlled assembly operations. A proactive approach to pad cratering can not only enhance the reliability of printed circuit boards but also minimize failures that are costly to repair. This is a critical concern that engineers and electronics companies should address.
FS PCBA specializes in building reliability into every board. Our expertise in material selection, advanced PCB assembly services, and rigorous testing protocols helps our clients design out risks like pad cratering from the start. [Contact us today] to partner on your next high-reliability project.
FAQs about Pad Cratering
Pad cratering usually occurs under the copper pad on the laminate and is not visible with standard visual or X-ray inspection. This concealed character necessitates the use of sophisticated methods of detection, such as dye-and-pry or acoustic microscopy, to detect it.
The most impacted industries include aerospace, defense, automotive, and medical device industries that depend on high-reliability electronics. In these areas, even a minor concealed crack might lead to serious system failures.
Yes. A PCB is a mechanical and thermal load that engineers can simulate using finite element analysis (FEA) and stress modeling tools. Such simulations are used to anticipate possible weak spots and inform design refinement prior to physical prototyping.
Pad cratering may cause recalls, warranty claims, and safety issues on mission-critical systems. In addition to financial cost, it can destroy brand image and customer confidence.
