PLC Controller PCBAs: How to Ensure a Lifespan of 10+ Years in Harsh Industrial Environments

PLC controller failures in industrial automation systems result in production stoppages and incur significant maintenance costs. The root causes of such failures are often traceable to specific PCBA-level degradation mechanisms, including thermal cycling fatigue, mechanical stress fractures, environmental contamination, and electromagnetic disturbance susceptibility. Designing a PLC PCBA for a 10+ year operational lifespan requires the systematic application of engineering methodologies across component selection, mechanical design, environmental protection, and electromagnetic compatibility (EMC) engineering.

This article outlines the technical strategies for extending PLC PCBA service life in industrial applications where temperature extremes, vibration, particulates, moisture, and electrical noise are present.

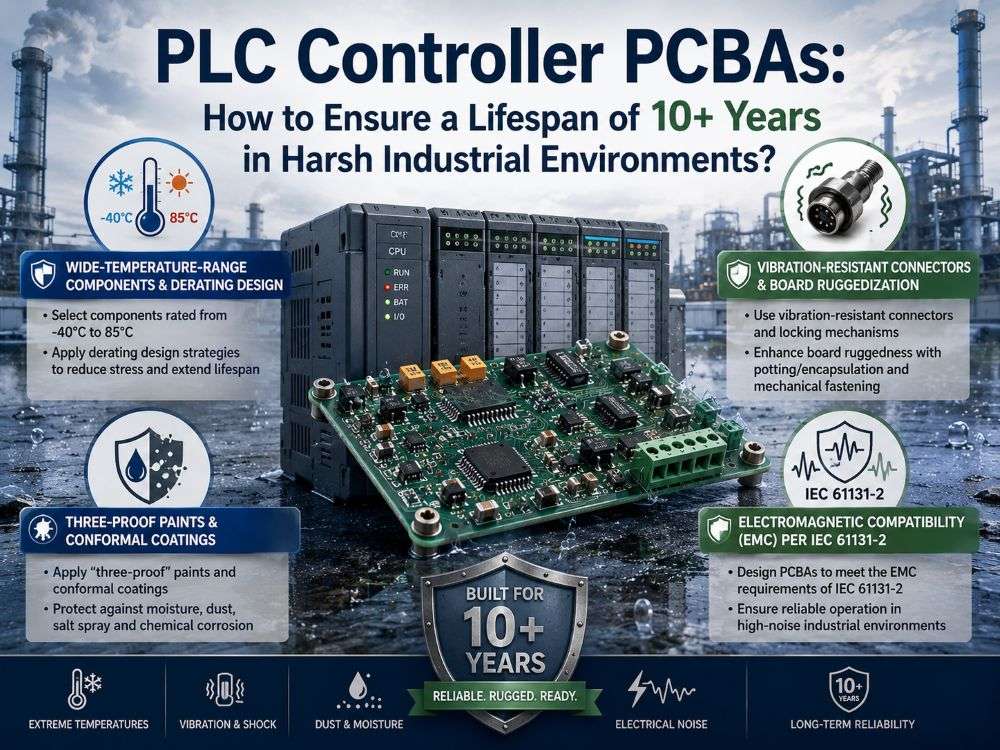

Industrial PLC PCBA - 4 Strategies to Ensure 10+ Years Controller Boards

Challenges Affecting PLC PCBA Reliability

The performance of the equipment and how long it can continue to operate are both impacted negatively when PLC PCBAs are used in harsh conditions. Several environmental factors contribute to the degradation of PLC PCBA performance over time. Some are mentioned below:

  • Thermal Cycling: Repeated expansion and contraction of materials with differing coefficients of thermal expansion (CTE) induce fatigue in solder joints and interconnects. This cyclic stress accumulates over time and is a primary mechanism for latent failure.
  • Mechanical Vibration: Rotating equipment, reciprocating pumps, and conveyor systems generate broadband mechanical vibration. Prolonged exposure can cause fretting corrosion in connectors, loosening of mechanical fasteners, and stress fractures in component terminations.
  • Particulate Contamination: Airborne dust accumulates on PCBA surfaces and within enclosures. This contamination can create conductive paths, reduce insulation resistance, and absorb ambient moisture, accelerating electrochemical migration.
  • Humidity and Condensation: Moisture ingress promotes corrosion of copper traces, oxidation of contact surfaces, and leakage currents. In severe cases, condensation leads to Kurzschlüsse between adjacent conductors.
  • Elektromagnetische Interferenz (EMI): Variable frequency drives, welding equipment, and switching Netzteile generate conducted and radiated emissions. These disturbances can interfere with analog signal conditioning, communication buses, and processor logic states.


Critical Design Strategies for Maximizing PLC PCBA Longevity

When designing and building a product to withstand extreme environmental conditions, the most important step you can take is to specify appropriate parts, provide both mechanical and environmental protection, and follow the industrial electronics standards.


Use Wide-Temperature Parts and De-rate Design

The most common parts used in industrial equipment operate over a wide range of temperatures, approximately -40ºC to +85ºC. Parts that are de-rated for electrical and thermal loading will increase the life of the parts and improve reliability (reference: based on the Arrhenius model).


Create Mechanical Robustness through Design Ruggedisation

Use specially designed anti-vibration connectors, additional mounting structures, and special fasteners to minimise the potential failure of electrical connections due to vibration. Protect the PLC PCBAs through Eintopfen and other structural protection methods; this also protects against vibration and mechanical loads on the PCBAs.


Protect PCBAs From Dust and Humidity

Viele types of conformal and 3-proof coatings create a sealed barrier to protect against all types of contamination. Coatings, along with studies and industrial experience, have demonstrated that conformal and 3-proof coatings reduce the risks of corrosion, improve the insulative properties, and extend the life of PCBAs in harsh environments.


Ensure PCB Assemblies Meet the IEC 61131-2 EMC Code

The IEC611313-2 testing and code varied from country to country. The PCB assemblies that have been tested for the IEC611313-2 EMC standards will have a higher likelihood of being able to withstand electrical interference and noise caused by electromagnetic devices in conjunction with processes taking place in an industrial environment.

Significance of EMC Compliance in PLC PCBA

Electromagnetic Compatibility (EMC) is the assurance that PLC controller PCBAs are functioning correctly under conditions where they may have encountered an electromagnetic disturbance (EMD). According to the requirements set forth by the IEC 61131-2 standard, PLC controllers must be designed to endure various sources of electrical noise prior to emitting or producing electromagnetic interference.


Sources of Electromagnetic Interference in Industrial Facilities

Many forms of electric motors and power systems are often large users of electrical energy and create significant levels of electrical noise in the form of EMI, which will be present throughout an industrial facility. Examples of manufacturers that produce devices that produce EMD include variable frequency drives like VFDs, electric motors and related equipment, relay switch circuits, welding machines, power supplies, drahtlos communications equipment, and other types of devices.


Risks to PLC Performance and Stability

The consequences of poor EMC performance can result in PLC-related problems such as: interruption or disruption of communication transmission data due to faulty signal processing by the controller; non-functional sensors leading to the production of erroneous signal results or non-challenging operation of the PLC which can record incorrect or no data and, in certain extreme cases, disruption of the production process, increases the cost of the organisation for maintaining and repairing equipment.


Compliance with Industrial Standards

Compliance with EMC specifications is necessary for manufacturers to be compliant with current industrial standards and regulations. For example, the IEC 61131-2 standard provides prescribed parameters for immunity to EMD and limits of emissions of EMD that a manufacturer needs to follow before placing an EMI source onto the overall systems.


Improve PLC Reliability and Prevent Possible Safety Concerns

Systems that provide a high level of performance concerning EMC will likely exhibit greater reliability than systems with lower levels of performance relative to the EMC standard. By reducing the levels of electromagnetic interference, the PLC will also be able to achieve its maximum effective operating state and thereby assure safe control over any industrial processes. The control function is essential to the proper operation of power plants, chemical processing operations, automated machines, etc.

EMC Design Practices of PLC Controller PCBA

The purpose of EMC design is to allow PLC PCBAs to operate with reliability, be able to meet testing specifications, and to provide a longer life in electrically hostile environments in industry.

  • Grounding and PCB Design: Having a continuous ground plane and designing the PCB with good routing will help to minimise the amount of electrical noise present. The proper routing of signals and the correct placement of traces will minimise current loops and signal interference for reliable communication and control.

  • I/O Filtering: Common-mode chokes and ferrite beads are placed on every I/O line at the connector entry point. Differential-mode LC or RC filters are implemented for analog input channels.

  • Abschirmung: Enclosures are constructed of conductive materials or coated with conductive paint. Shielded cables with 360° connector backshell termination are specified for communication lines.

  • Surge and ESD-Schutz: TVS diodes, MOVs, and other protective components for ESD are used to protect the PLC PCBAs against voltage spikes and electrostatic discharge. Research has shown that preserving the integrity of signals is critical in industrial PCBAs. Routing the traces correctly will improve the integrity of signal transmission.

  • Layer Stack-Up Optimization: Optimising the PCB-Schicht stack-up design will provide an improved level of EMC through the dedicated power and ground planes available. Proper layer design will reduce radiated emissions and noise, which will enhance the overall performance of the circuit.

Summary of Design Requirements for 10+ Year Service Life

To guarantee a PLC Controller PCBA’s operating life of 10+ years, the PCBA-Hersteller must consider the following key factors:

  1. Select suitable components rated between -40°C and +85°C operating temperature.
  2. Derate electrical (current) and thermal (heat) ratings of the used components.
  3. Utilise vibration-resistant connectors.
  4. Use ruggedised PCB-Design in critical areas.
  5. Add potting, encapsulation, and other mechanical attachment methods.
  6. Use 3-proofs and conformal coating for assembly protection.
  7. Minimise exposure to dust, moisture, and corrosion.
  8. Design PCBA’s to comply with IEC 61131-2 criteria for EMC.
  9. Look at existing causes of industrial EMC issues.
  10. Utilise proper grounding, shielding, filtering, surge protection, and ESD protection techniques.
  11. Test for reliability with industry-recognised testing methods.
  12. Integrate environmental protection and EMC processes for a total service life of over 10 years.

Fazit

Manufacturing excellence alone isn’t sufficient to create PLC PCBA boards that will provide service and reliability for a minimum of 10 years. At least as important is the selection of components that have been tested for operational ranges such as wide temperature ranges, derating methods, rugged designs, applying conformal coating, and applying EMC engineering, among others. To assist with achieving these long-term objectives, manufacturers will rely on a number of industry standards, e.g., IEC 61131-2; IPC-A-610; IPC-9592; and IEC 60068, as well as board reliability research done by IEEE and NASA. The combination of these items has allowed manufacturers to produce reliable PLC controllers.

FAQs about PLC PCBA

A three-proof coating is a term created for PCBA manufacturing in Asian territory. The term describes PCBAs that will withstand three major sources of environmental stress, like moisture, dust and corrosion. These PCBAs contain a thick conformal coating on every component and connection that protects the entire surface of each part.
In industrial PCBA installations, the most prominent causes of PLC PCBA failures are: thermal stress that causes cracking of solder joints, moisture which causes corrosion of unprotected traces and between pins, fretting at the connections caused by vibration and ESD/surge damage to unprotected I/Os. In the vast majority of cases, however, it is not due to one source of failure but rather a combination of all four sources of failure.
The commercial-grade PCBA includes devices rated for usage only between 0 and 70 °C, has standard FR4 substrates, and has very limited methods for protecting the device while in use. While these specifications may be acceptable in an office environment, they are not acceptable in an industrial setting. The device specifications for industrial-grade PCBA include components rated for use −40°C to +85°C or higher, use high Tg laminate substrates, apply conformal coating or potting, voltage derating methods, and have undergone many test methods to verify their reliability, such as Environmental Stress Screening (ESS) via Thermal Cycling, Vibration and Humidity.
In order to estimate how long a PCBA will last in a high-temperature environment, the Arrhenius equation is always used. It is a well-known fact that for every 10°C decrease in operating temperature, capacitor life approximately doubles. And the chemicals in the remaining components will degrade much more noticeably. For this reason, derating to approximately 50% voltage on the capacitor and keeping the semiconductor away from the maximum operating junction temperature is critical.
At minimum ISO9001. For medical devices, require ISO13485. For automotive, IATF16949. For aerospace, AS9100. Also look for IPC-A-610 certification (acceptability of electronic assemblies).
