How PCBA Powers Smart EV Charging Stations?

Die electric vehicle (EV) market has grown steadily over the past couple of years and so has the need for robust and intelligent charging infrastructure, which is seen in daily life. Today, EV charging stations are not simply power points, but smart electrical systems that can communicate with the vehicle to take charge and report information to a remote admin. The one that plays an important role in this is PCBA for EV charging station. PCBA advances have enabled manufacturers to shrink more functionality, electronics, safety, and communication interfaces into a competitive price point in a very small package.

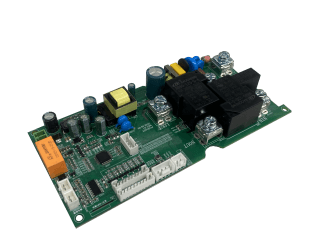

PCBA in EV Charging Stations

A PCBA, short for printed circuit board assembly, consists of the blank printed circuit board, in addition to all components necessary for operation, mounted on it. This means the EV charger PCBA binds the charging section, the communication interfaces, the control system and the power conversion stages together. This would require the PCBA to contain adequate processing units, communication interfaces, protection circuits and connectors.

PCBA Blocks in EV Charging Stations

Control Block

To control the power management block, a control system is needed to make sense of the feedback collected and actuate the components on the power management block accordingly. Performing the required calculations and implementing the logic desired requires the presence of a programmable unit, which could be a microcontroller, a microprocessor, an FPGA or a dedicated charge controller with all the necessary logic blocks built-in. In addition to the feedback collected from the power management module, this block could control the system based on user options or directions dictated by remote stations, both of which require the ability to communicate with the outside world, which could either be through physical interfaces such as touch screens and keypads, or remote interfaces such as cloud services and mobile applications. The presence of a smart controller in the station could also allow it to regulate charging according to grid status, admin preferences or the circumstances of the station (the weather, customer count, etc.).

Power Block

The power management block is the part in which power is converted from one form to the other, either from AC to DC or back, or from high voltages to low voltages, or any other combination. Some systems might consist of several stages depending on the charging mechanism. This block is mostly made up of high-power components such as MOSFETs, IGBTs, gate drivers (switch-specific), relays and rectifiers. Those components control the flow of electricity depending on the desired function of the block, which could include stepping voltage up or down or rectifying AC voltages, for example. Precise flow control would, of course, require some sort of feedback on several paths and nodes, such as current sensing, voltage sensing and zero-crossing detection.

Communication Modules & User Interface

To enable the charging station to interact with the outside world, it should be able to communicate with other electronics devices. Many processing unites (found in the control block) have the ability to communicate natively through several Kommunikationsprotokolle, including CAN, Wi-Fi, Bluetooth, Ethernet and many others, needing a physical layer at specific times only (Ethernet PHYs, CAN transceivers, etc.). As a matter of fact, there are many communication protocols designed specifically for automotive applications. Other than receiving user preferences and admin restrictions, the communication module could be used for diagnosis of the charging operation, vehicle and station software updates, payment processing, charging session tracking, billing and many other applications.

Safety & Protection Circuits

Given the criticality of charging stations and the high power they use, protection is extremely crucial for the safety of the user, their vehicle and the station. In addition to the meticulously tuned control system implemented in the control block, protection devices need to be used all around the system as second and third (or more) layers of protection, just in case the first layer of defence breaks. Many places around the world mandate the compliance of commercially-sold chargers with either local or global standards, which require specific protection methods, risk analysis and fall-back protocols. As much as those standards seem restrictive, they are necessary to ensure the safety of users, their vehicles, the station used and the surroundings.

Key PCBA-Enabled Functions of Smart EV Charging Stations

The EV charger PCBA is integrated with control systems, communication module, and power management circuits, which comprise all smart functionalities of an EV charging station. A list of the most important PCBA-driven functions is given below:

Remote Monitoring and Maintenance

The PCBA in EV charging station communicates with the back-end management platform. Data such as the current charging status, component temperature, and fault indication are sent back to be processed by the management platform, which can then to remote control the various charging stations, troubleshoot faults (for instance, power losses, or component faults), and run scheduled downtime maintenance when needed. For instance, if the PCBA detects that a component is running over the temperature range, an alert can be sent to the back-end platform, which then manages to signal the operator that the particular component must be looked after without sending a technician on-site.

Dynamic Load Management

As the adoption of EVs is expanding, charging stations are more often experiencing peak demand times when multiple vehicles are drawing power at the same time. The EV charger PCBA’s control and power management modules collaboratively regulate power delivery to the charging ports, preventing overload of the grid. This function is of particular importance in public electric vehicle charging stations where the available power capacity of the grid is limited. The PCBA for EV charging station can respond to current grid conditions and power demand to manage power output on an individual port basis and maximize both the charging speed and the efficiency of the grid.

User Payment Integration

The EV charger PCBA communicates with payment terminals (for example, card readers, QR code scanners), as well as with the payment gateways. It uses its communication module to do so. When the user terminates his charge (be it a time charge or a kWh charge), the PCBA in EV charging station will compute the amount that needs to be paid, send the payment request over to the gateway, and wait until the payment has been confirmed, and then terminate the charge. This way, the system is user-friendly and secure, and the billing is accurate and reliable. The PCBA uses its non-volatile memory for storing the charging and payment data so that data can be traced in case of audit requirements.

Multi-Layer Safety Protection

Safety is the main concern that the PCBA should take into account for the EV Charging Stations. The full packing of a series of safety mechanisms in PCBA should be integrated to avoid any electrical damage and dangers. This should involve:

Overcurrent & overvoltage protection: the sensors integrated on the EV charger PCBA identify irregular current and voltage increase, and this control system turns off supplied power in milliseconds, avoiding EV battery, charging station or power grid from being damaged.
Short-circuit und ground fault protection: Sense short-circuits or leakage current, disable the charging circuit to prevent fire or electric shock.
Temperature monitoring: Applies NTC thermistors to monitor temperatures of major components, like power semiconductors, charging ports, etc. When the temperature goes beyond the safe value (usually 70℃), the PCBA gives less power (or stops charging) until the unit has cooled down.
Insulation monitoring: Low-frequency signals are injected into the Charger circuit to measure its resistance to earth. Should resistance be too low (and currents leak out, killing the charger operator), then the PCBA sets off an alarm and stops the charger operating.

EV Charging Station PCBA Design Requirements

Signalintegrität

Since high voltages and currents are involved, the environment becomes quite noisy, and all high-power nodes are considered aggressors to delicate digital and analog sections. Those sections must be routed tightly and distantly as much as possible from all possible aggressors, and should be shielded if possible. Other techniques which could help include differential routing (when necessary), proper grounding, isolation and EMI control. Otherwise, control systems can misbehave, and the system could become corrupt.

High-Power PCB Considerations

PCBAs used in EV charging stations must endure high currents and withstand high voltages safely and efficiently. Therefore, thick copper traces and even external conductors are sometimes used to withstand these demanding circumstances. This requires the designer to take creepage, clearance, isolation and precise layout into consideration when designing the board.

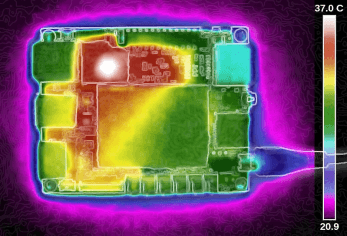

Thermal Design

Switching high-power waveforms and controlling their flow results in many losses since no components are ideal, and a large proportion of these losses are produced in the form of heat, especially in DC fast chargers. The design of the EV charger PCBA should take this into account by using large copper fills, thick copper layers, a plenty of thermal vias and mounts for Wärmesenken. Ventilation and aeration also need to be planned properly.

Fazit

As the backbone of every EV smart charging station, PCBAs are integral to a smarter, more efficient automotive future. Their development required advances in many disciplines, as well as skillful integration between power electronics, control systems, communication interfaces and safety.

FS PCBA has what it takes to take your EV smart charging station concepts to reality, complying with all your requirements and all necessary standards.

Contact us today for more information!

FAQS about PCBA for EV Charging Station

What would happen if the control system of an EV charging station fails?

The protection devices would come into action, and since standards usually require the presence of several protection layers, catastrophic failure is far from a question.

Are commercial and residential EV charging station PCBAs different?

Yes, commercial stations have higher power handling requirements since they have to serve several vehicles at a higher frequency. This affects the design choices and component selection.

How long does an EV charging station typically last?

If maintained well and operated under normal conditions, well-designed station should last for many years under continuous usage. This, of course, also depends on usage frequency and operation conditions.
